LED SIGNAL LIGHT FOR TRUCKS AND TRAILERS BR05100001

LED Direction + Stop/ Tail Signal Light
1.Power : 6pcs amber Leds+6pcs red leds
2.Voltage:10-30V DC
3.Beam Pattern:Direction + Stop/ Tail
4.Dimension: 130*30*11mm
5. LED Color : YELLOW+RED
6.Working Temperature:-45 ~60°C
7. Material: ; Aluminum alloy housing +PC Lens
8. Mount: Two bolts
9.Waterproof: IP69K
10.Guarantee: 3 years

LED Work light/ Reversing Light with SIGNAL light (Driving +stop+direction)
1.Power : 24PCS  white leds,12PCS Blue leds
2.Lumen: 1600LM 3.Voltage:10-30V DC 4.Beam Pattern: Flood + Flash
5.Dimension: 74*91*32mm
6.Working Temperature:-45 ~60°C
7.Color Temp :5000~6500K
8.Waterproof: IP67
9. Guarantee: 3 years
10.Material: Diecast aluminum housing; PC Lens

LED Work light/ Reversing Light with Warning light AMBER
1.Power : 24PCS  white leds,12PCS  amber leds.
2.Lumen: 1600LM 3.Voltage:10-30V DC 4.Beam Pattern: Flood + Flash
5.Dimension: 74*91*32mm
6.Working Temperature:-45 ~60°C
7.Color Temp :5000~6500K
8.Waterproof: IP67
9. Guarantee: 3 years
10.Material: Diecast aluminum housing; PC Lens

23inch LED Emergency Light Bar
1.Power :70W
2.Voltage:10-30V DC
3.Beam Pattern: 19 flash patterns
4.Dimension: 591.7*259.3*36mm
5.Working Temperature:-45 ~60°C
6. LED Color : Amber
7.Waterproof: IP67
8.Material: PC Lens +PC housing
9.Mount: Standard Bracket with 3m 3core wire
10. Guarantee: 3 years

47inch LED Emergency Light Bar
1.Power : 95W
2.Voltage:10-30V DC
3.Beam Pattern: 19 flash patterns
4.Dimension: 1200.5*259.3*36mm
5.Working Temperature:-45 ~60°C
6. LED Color : Amber
7.Waterproof: IP67
8.Material: PC Lens +PC housing
9.Mount: Standard Bracket with 3m 3core wire
10. Guarantee: 3 years

LED COMBO LICENSE PLATE LIGHT
1.Power : 6pcs Warning+Position:24pcs;plate:6pcs;
2.Voltage:10-30V DC
3.Flash Pattern: 19 Flash
4.Dimension: 165*59*30mm
5.Working Temperature:-45 ~60°C
6.Waterproof: IP68 IP69K
7. Guarantee: 3 years
8.Material: Diecast aluminum housing; PC Lens
9.Horizontal mounting

RECTANGULAR LED SIGNAL LIGHT STYLE 1
Functions: Tail+Stop+D.I+Reverse+
Retro Reflector
1.Power :tail:1w;stop:1.8w;di:1.8w;rev:1.8w
2. Led color: red/amber/white
3.Voltage:10-30V DC
4.LED qty: tail:36pcs;stop:4pcs;di:6pcs;rev:6pcs
5.Dimension: 191*49*26mm
6.Working Temperature:-45 ~60°C
7.Waterproof: IP67
8. Guarantee: 3 years
9.Material: ABS housing; PC COVER
10. Passed ECE R148 ECE R10

RECTANGULAR LED SIGNAL LIGHTS STYLE 2
Functions: Tail+Rearfog+Reverse+
Retro Reflector
1.Power: tail:1w;fog:4w;rev:1.8w
2. Led color: red/white
3.Voltage:10-30V DC
4.LED qty:tail:18pcs;fog:6pcs;rev:6pcs
5.Dimension: 191*49*26mm
6.Working Temperature:-45 ~60°C
7.Waterproof: IP67
8. Guarantee: 3 years
9.Material: ABS housing; PC COVER
10. Passed ECE R148 ECE R10

Square LED Multifunction Signal Light
Retro Reflector+DI+Stop+Tail
+Number plate lamp
1.Power:tail:1w;stop:1.8W;di:1.8W;PLATE:1.5W
2. Led color: red/amber
3.Voltage:10-30V DC
4.LED qty:tail:18pcs;fog:6pcs;rev:6pcs
5.Dimension: 150*80*24mm
6.Working Temperature:-45 ~60°C
7.Waterproof: IP67
8. Guarantee: 3 years
9.Material: ABS housing; PC COVER
10. Passed ECE R148 ECE R10

RECTANGULAR LED SIGNAL LIGHTS
Functions:Rearfog+Retro Reflector+D.I+Tail+Reverse+stop
1.Power: tail:1w;stop:1.8W;di:1.8W;rev:1.8W;fog:
4W:1w;fog:4w;rev:1.8w
2. Led color: red/amber / white
3.Voltage:10-30V DC
4.LED qty:tail:36pcs;stop:8pcs;di:19pcs;rev:6pcs;fog:8pcs
5.Dimension: 284*100*32mm
6.Working Temperature:-45 ~60°C
7.Waterproof: IP67
8. Guarantee: 3 years
9.Material: ABS housing; PC COVER
10. Passed ECE R148 ECE R10

Short Rectangular LED Multifunction Signal Light
Functions: Retro Reflector+D.I+Tail+stop
1.Power: tail:1w;stop:1.8W;di:1.8W
2. Led color: red/amber
3.Voltage:10-30V DC
4.LED qty:tail:18pcs;fog:6pcs;rev:6pcs
5.Dimension: 150*80*24mm
6.Working Temperature:-45 ~60°C
7.Waterproof: IP67
8. Guarantee: 3 years
9.Material: ABS housing; PC COVER
10. Passed ECE R148 ECE R10

LED WARNING LIGHT + STD FUNCTIONS Stop/Tail+ Direction+Reversing +Amber Warning
1.Power : 9pcs led for Stop/Tail +9pcs led for Direction+9pcs led for Reversing+9pcs led for Warning
2.Voltage:10-30V DC
3.Flash Pattern: 19 Flash
4.Dimension: 248*32*20mm
5.Working Temperature:-45 ~60°C
6.Waterproof: IP68 IP69K
7. Guarantee: 3 years
8.Material: Diecast aluminum housing; PC Lens
9. Passed SAE / ECE R65 R148

LED WARNING LIGHT + STD FUNCTIONS Stop/Tail+ Direction+ +Amber Warning
1.Power : 9pcs led for Stop/Tail +9pcs led for Direction+9pcs led for Reversing+9pcs led for Warning
2.Voltage:10-30V DC
3.Flash Pattern: 19 Flash
4.Dimension: 248*32*20mm
5.Working Temperature:-45 ~60°C
6.Waterproof: IP68 IP69K
7. Guarantee: 3 years
8.Material: Diecast aluminum housing; PC Lens
9. Passed SAE / ECE R65 R148

1.Power : 16PCS 1W Amber/Blue leds
2.Voltage:10-30V DC
3.Flash Pattern: 19 Flash
4.Dimension: 80*54*16mm
5.Working Temperature:-45 ~60°C
6.Waterproof: IP69K
7. Guarantee: 3 years
8.Material: Diecast aluminum housing;PC Lens
9. Passed ECE R65 / SAE

1.Power : 12PCS 1W Amber/Blue leds
2.Voltage:10-30V DC
3.Flash Pattern: 19 Flash
4.Dimension: 80*54*16mm
5.Working Temperature:-45 ~60°C
6.Waterproof: IP69K
7. Guarantee: 3 years
8.Material: Diecast aluminum housing;PC Lens
9. Passed ECE R65 / SAE

LED Scene light/reverse+warning lamp
1.Power : 24PCS 1W OSRAM Whiteleds
+12PCS Amber 1W led / 18 PCS Blue 1W led
2.Lumen:3000LM
3.Voltage:10-30V DC
4.Beam Pattern: Flood
5.Dimension: 179.7*60.9*28mm
6.Working Temperature:-45 ~60°C
7.Color Temp :5000~6500K
8.Waterproof: IP69K
9. Guarantee: 3 years
10.Material: Diecast aluminum housing;
PC Lens

LED Scene light/reverse+warning lamp
1.Power : 24PCS 1W OSRAM Whiteleds
+12PCS Amber 1W led / 18 PCS Blue 1W led
2.Lumen:3000LM
3.Voltage:10-30V DC
4.Beam Pattern: Flood
5.Dimension: 179.7*60.9*28mm
6.Working Temperature:-45 ~60°C
7.Color Temp :5000~6500K
8.Waterproof: IP69K
9. Guarantee: 3 years
10.Material: Diecast aluminum housing;
PC Lens

48W LED Strobe Beacon blue color
passed ECE R65 CLASS2
            ECE R10
            SAE CLASS1
            IP67

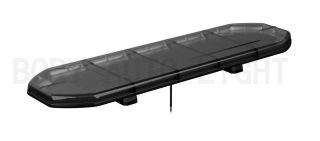

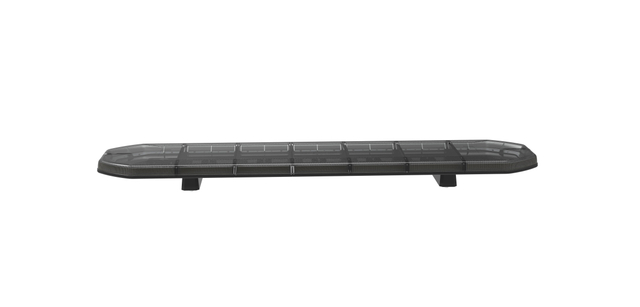

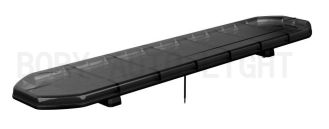

LED WARNING LIGHT BAR
1.Voltage:10-30V DC
2.Beam Pattern: 19 flash patterns
3.Working Temperature:-45 ~60°C
4.Waterproof: IP67
5.Material: PC Lens +PC housing
6. Mounting: Gutter
7. Guarantee: 3 years
8. ECE R10 R65 CLASS2 / SAE J845 CLASS1
9. Length: 59inch / 1.45 M
10. Power: 105W  516 LEDS
