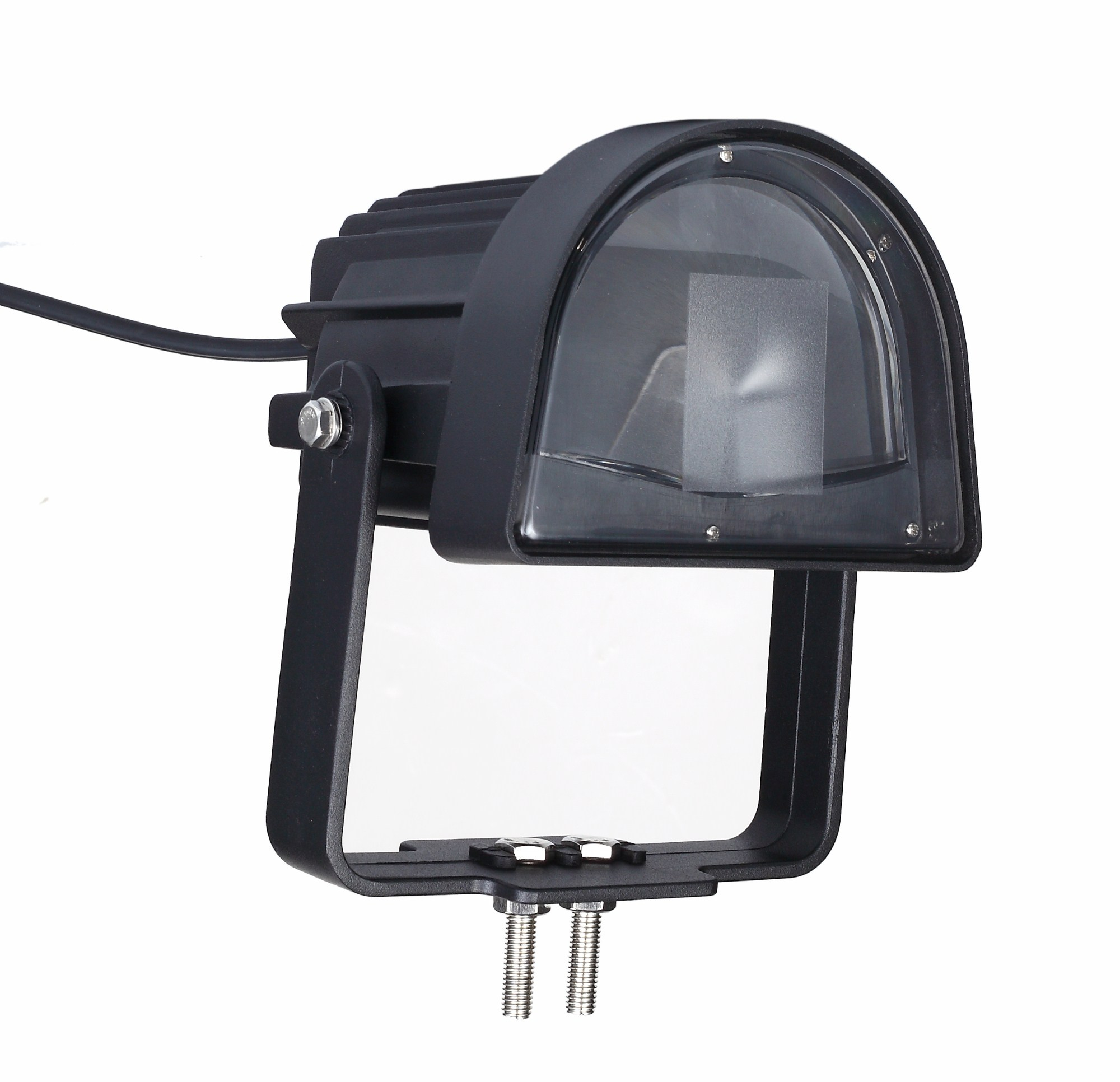

LED FORK SIGNAL LIGHT ARC LINE BR0601002

10W arc line signal light
1. Light source:High-power LED Colored
2. Operating Voltage:10-80V DC
3. Led power:10W
4. Reverse polarity protected
5. double insulated silicon rubberized wire,can bear very low&high temperature
6. Color: Red, Blue or Green for optional
7. Material: aluminium die-cast housing, PC cover,stainless steel bracket
8. Working environment: -40°-80°
9. Optional beam: Arc beam
10. Life time:>50000h
11. IP:67
12. 2 years warranty
Availability:
Quantity:
Inquire

  • BR0601002

  • BORY

  • BR0601002

with blue arc line / red arc line / green arc line

several colors optional

suitable for forklifts

This is the high quality model

With 2 years warranty, IP67

Previous:
Next:

Get A Free Quote

  • LED COMBO LICENSE PLATE LIGHT R10 R148 R65 / SAE DOT BR05060601 horizontal mounting LED COMBO LICENSE PLATE LIGHT R10 R148 R65 / SAE DOT BR05060601 horizontal mounting
    LED COMBO LICENSE PLATE LIGHT R10 R148 R65 / SAE DOT BR05060601 horizontal mounting
    LED COMBO LICENSE PLATE LIGHT
    1.Power : 6pcs Warning+Position:24pcs;plate:6pcs;
    2.Voltage:10-30V DC
    3.Flash Pattern: 19 Flash
    4.Dimension: 165*59*30mm
    5.Working Temperature:-45 ~60°C
    6.Waterproof: IP68 IP69K
    7. Guarantee: 3 years
    8.Material: Diecast aluminum housing; PC Lens
    9.Horizontal mounting
  • LED MULTIFUNCTION REAR LIGHT 191MM BR05070001 LED MULTIFUNCTION REAR LIGHT 191MM BR05070001
    LED MULTIFUNCTION REAR LIGHT 191MM BR05070001
    RECTANGULAR LED SIGNAL LIGHT STYLE 1
    Functions: Tail+Stop+D.I+Reverse+
    Retro Reflector
    1.Power :tail:1w;stop:1.8w;di:1.8w;rev:1.8w
    2. Led color: red/amber/white
    3.Voltage:10-30V DC
    4.LED qty: tail:36pcs;stop:4pcs;di:6pcs;rev:6pcs
    5.Dimension: 191*49*26mm
    6.Working Temperature:-45 ~60°C
    7.Waterproof: IP67
    8. Guarantee: 3 years
    9.Material: ABS housing; PC COVER
    10. Passed ECE R148 ECE R10

    RECTANGULAR LED SIGNAL LIGHTS STYLE 2
    Functions: Tail+Rearfog+Reverse+
    Retro Reflector
    1.Power: tail:1w;fog:4w;rev:1.8w
    2. Led color: red/white
    3.Voltage:10-30V DC
    4.LED qty:tail:18pcs;fog:6pcs;rev:6pcs
    5.Dimension: 191*49*26mm
    6.Working Temperature:-45 ~60°C
    7.Waterproof: IP67
    8. Guarantee: 3 years
    9.Material: ABS housing; PC COVER
    10. Passed ECE R148 ECE R10
  • NEW Led Lightbar Warning Light 47 INCH NEW Led Lightbar Warning Light 47 INCH
    NEW Led Lightbar Warning Light 47 INCH BR04044701
    47inch LED Emergency Light Bar
    1.Power : 95W
    2.Voltage:10-30V DC
    3.Beam Pattern: 19 flash patterns
    4.Dimension: 1200.5*259.3*36mm
    5.Working Temperature:-45 ~60°C
    6. LED Color : Amber
    7.Waterproof: IP67
    8.Material: PC Lens +PC housing
    9.Mount: Standard Bracket with 3m 3core wire
    10. Guarantee: 3 years
  • NEW Led Lightbar Warning Light 23 INCH BR04042301 NEW Led Lightbar Warning Light 23 INCH BR04042301
    NEW Led Lightbar Warning Light 23 INCH BR04042301
    23inch LED Emergency Light Bar
    1.Power :70W
    2.Voltage:10-30V DC
    3.Beam Pattern: 19 flash patterns
    4.Dimension: 591.7*259.3*36mm
    5.Working Temperature:-45 ~60°C
    6. LED Color : Amber
    7.Waterproof: IP67
    8.Material: PC Lens +PC housing
    9.Mount: Standard Bracket with 3m 3core wire
    10. Guarantee: 3 years
  • Square LED Multifunction Signal Light Retro Reflector+DI+Stop+Tail +Number plate lamp BR05090001 Square LED Multifunction Signal Light Retro Reflector+DI+Stop+Tail +Number plate lamp BR05090001
    Square LED Multifunction Signal Light Retro Reflector+DI+Stop+Tail +Number plate lamp BR05090001
    Square LED Multifunction Signal Light
    Retro Reflector+DI+Stop+Tail
    +Number plate lamp
    1.Power:tail:1w;stop:1.8W;di:1.8W;PLATE:1.5W
    2. Led color: red/amber
    3.Voltage:10-30V DC
    4.LED qty:tail:18pcs;fog:6pcs;rev:6pcs
    5.Dimension: 150*80*24mm
    6.Working Temperature:-45 ~60°C
    7.Waterproof: IP67
    8. Guarantee: 3 years
    9.Material: ABS housing; PC COVER
    10. Passed ECE R148 ECE R10
  • LED MULTIFUNCTION REAR LIGHT 284MM BR05080001 LED MULTIFUNCTION REAR LIGHT 284MM BR05080001
    LED MULTIFUNCTION REAR LIGHT 284MM BR05080001
    RECTANGULAR LED SIGNAL LIGHTS
    Functions:Rearfog+Retro Reflector+D.I+Tail+Reverse+stop
    1.Power: tail:1w;stop:1.8W;di:1.8W;rev:1.8W;fog:
    4W:1w;fog:4w;rev:1.8w
    2. Led color: red/amber / white
    3.Voltage:10-30V DC
    4.LED qty:tail:36pcs;stop:8pcs;di:19pcs;rev:6pcs;fog:8pcs
    5.Dimension: 284*100*32mm
    6.Working Temperature:-45 ~60°C
    7.Waterproof: IP67
    8. Guarantee: 3 years
    9.Material: ABS housing; PC COVER
    10. Passed ECE R148 ECE R10
  • LED SIGNAL LIGHT FOR TRUCKS AND TRAILERS BR05100001 LED SIGNAL LIGHT FOR TRUCKS AND TRAILERS BR05100001
    LED SIGNAL LIGHT FOR TRUCKS AND TRAILERS BR05100001
    Short Rectangular LED Multifunction Signal Light
    Functions: Retro Reflector+D.I+Tail+stop
    1.Power: tail:1w;stop:1.8W;di:1.8W
    2. Led color: red/amber
    3.Voltage:10-30V DC
    4.LED qty:tail:18pcs;fog:6pcs;rev:6pcs
    5.Dimension: 150*80*24mm
    6.Working Temperature:-45 ~60°C
    7.Waterproof: IP67
    8. Guarantee: 3 years
    9.Material: ABS housing; PC COVER
    10. Passed ECE R148 ECE R10
  • video LED WARNING LIGHT + STD FUNCTIONS Stop/Tail+ Direction+Reversing +Amber Warning LED WARNING LIGHT + STD FUNCTIONS Stop/Tail+ Direction+Reversing +Amber Warning
    LED WARNING LIGHT + STD FUNCTIONS Stop/Tail+ Direction+Reversing +Amber Warning
    LED WARNING LIGHT + STD FUNCTIONS Stop/Tail+ Direction+Reversing +Amber Warning
    1.Power : 9pcs led for Stop/Tail +9pcs led for Direction+9pcs led for Reversing+9pcs led for Warning
    2.Voltage:10-30V DC
    3.Flash Pattern: 19 Flash
    4.Dimension: 248*32*20mm
    5.Working Temperature:-45 ~60°C
    6.Waterproof: IP68 IP69K
    7. Guarantee: 3 years
    8.Material: Diecast aluminum housing; PC Lens
    9. Passed SAE / ECE R65 R148
  • video LED WARNING LIGHT + STD FUNCTIONS Stop/Tail+ Direction+ +Amber Warning LED WARNING LIGHT + STD FUNCTIONS Stop/Tail+ Direction+ +Amber Warning
    LED WARNING LIGHT + STD FUNCTIONS Stop/Tail+ Direction+ +Amber Warning
    LED WARNING LIGHT + STD FUNCTIONS Stop/Tail+ Direction+ +Amber Warning
    1.Power : 9pcs led for Stop/Tail +9pcs led for Direction+9pcs led for Reversing+9pcs led for Warning
    2.Voltage:10-30V DC
    3.Flash Pattern: 19 Flash
    4.Dimension: 248*32*20mm
    5.Working Temperature:-45 ~60°C
    6.Waterproof: IP68 IP69K
    7. Guarantee: 3 years
    8.Material: Diecast aluminum housing; PC Lens
    9. Passed SAE / ECE R65 R148
  • video 4 LED 16W Led surface mounted warning light head 4 LED 16W Led surface mounted warning light head
    4 LED 16W Led surface mounted warning light head
    1.Power : 16PCS 1W Amber/Blue leds
    2.Voltage:10-30V DC
    3.Flash Pattern: 19 Flash
    4.Dimension: 80*54*16mm
    5.Working Temperature:-45 ~60°C
    6.Waterproof: IP69K
    7. Guarantee: 3 years
    8.Material: Diecast aluminum housing;PC Lens
    9. Passed ECE R65 / SAE
  • video 6 LED 18W Led surface mounted warning light head 6 LED 18W Led surface mounted warning light head
    6 LED 18W Led surface mounted warning light head
    1.Power : 12PCS 1W Amber/Blue leds
    2.Voltage:10-30V DC
    3.Flash Pattern: 19 Flash
    4.Dimension: 80*54*16mm
    5.Working Temperature:-45 ~60°C
    6.Waterproof: IP69K
    7. Guarantee: 3 years
    8.Material: Diecast aluminum housing;PC Lens
    9. Passed ECE R65 / SAE
  • LED Scene Light + Warning ECE R10 R148 R65 / SAE LED Scene Light + Warning ECE R10 R148 R65 / SAE
    LED Scene Light + Warning ECE R10 R148 R65 / SAE
    LED Scene light/reverse+warning lamp
    1.Power : 24PCS 1W OSRAM Whiteleds
    +12PCS Amber 1W led / 18 PCS Blue 1W led
    2.Lumen:3000LM
    3.Voltage:10-30V DC
    4.Beam Pattern: Flood
    5.Dimension: 179.7*60.9*28mm
    6.Working Temperature:-45 ~60°C
    7.Color Temp :5000~6500K
    8.Waterproof: IP69K
    9. Guarantee: 3 years
    10.Material: Diecast aluminum housing;
    PC Lens
  • LED WARNING LIGHT + REVERSING LED WARNING LIGHT + REVERSING
    LED WARNING LIGHT + REVERSING
    LED Scene light/reverse+warning lamp
    1.Power : 24PCS 1W OSRAM Whiteleds
    +12PCS Amber 1W led / 18 PCS Blue 1W led
    2.Lumen:3000LM
    3.Voltage:10-30V DC
    4.Beam Pattern: Flood
    5.Dimension: 179.7*60.9*28mm
    6.Working Temperature:-45 ~60°C
    7.Color Temp :5000~6500K
    8.Waterproof: IP69K
    9. Guarantee: 3 years
    10.Material: Diecast aluminum housing;
    PC Lens
  • Signal Light + Work Light ECE R10 R148 R65 / SAE Signal Light + Work Light ECE R10 R148 R65 / SAE
    Signal Light + Work Light ECE R10 R148 R65 / SAE
    LED Work light/ Reversing Light with SIGNAL light (Driving +stop+direction)
    1.Power : 6PCS 3W white leds,12PCS 1W amber/red/blue leds
    2.Lumen: 1600LM 3.Voltage:10-30V DC 4.Beam Pattern: Flood + Flash
    5.Dimension: 74*91*32mm
    6.Working Temperature:-45 ~60°C
    7.Color Temp :5000~6500K
    8.Waterproof: IP69K
    9. Guarantee: 3 years
    10.Material: Diecast aluminum housing; PC Lens
  • Bracket Warning Light + Work Light ECE R10 R148 R65 / SAE Bracket Warning Light + Work Light ECE R10 R148 R65 / SAE
    Bracket Warning Light + Work Light ECE R10 R148 R65 / SAE
    LED Work light/ Reversing Light with Warning light AMBER/BLUE/DUAL COLORS
    1.Power : 6PCS 3W white leds,12PCS 1W amber/red/blue leds
    2.Lumen: 1600LM 3.Voltage:10-30V DC 4.Beam Pattern: Flood + Flash
    5.Dimension: 74*91*32mm
    6.Working Temperature:-45 ~60°C
    7.Color Temp :5000~6500K
    8.Waterproof: IP69K
    9. Guarantee: 3 years
    10.Material: Diecast aluminum housing; PC Lens
  • 48W LED Strobe Beacon blue color for ambulance police vehicles 48W LED Strobe Beacon blue color for ambulance police vehicles
    48W LED Strobe Beacon blue color for ambulance police vehicles
    48W LED Strobe Beacon blue color
    passed ECE R65 CLASS2
                ECE R10
                SAE CLASS1
                IP67
  • Led Lightbar Warning Light 59 INCH
    Led Lightbar Warning Light 59 INCH
    LED WARNING LIGHT BAR
    1.Voltage:10-30V DC
    2.Beam Pattern: 19 flash patterns
    3.Working Temperature:-45 ~60°C
    4.Waterproof: IP67
    5.Material: PC Lens +PC housing
    6. Mounting: Gutter
    7. Guarantee: 3 years
    8. ECE R10 R65 CLASS2 / SAE J845 CLASS1
    9. Length: 59inch / 1.45 M
    10. Power: 105W  516 LEDS
  • Led Lightbar Warning Light 47 INCH Led Lightbar Warning Light 47 INCH
    Led Lightbar Warning Light 47 INCH
    LED WARNING LIGHT BAR
    1.Voltage:10-30V DC
    2.Beam Pattern: 19 flash patterns
    3.Working Temperature:-45 ~60°C
    4.Waterproof: IP67
    5.Material: PC Lens +PC housing
    6. Mounting: Gutter
    7. Guarantee: 3 years
    8. ECE R10 R65 CLASS2 / SAE J845 CLASS1
    9. Length: 47 inch / 1.2 M
    10. Power: 95W 420 LEDS
  • Led Lightbar Warning Light 35 Inch Led Lightbar Warning Light 35 Inch
    Led Lightbar Warning Light 35 Inch
    1,Lightbar Function customizable.
    2,Water-proof IP67 grade
    3,Certification R65 Class2,R10,SAE Class 1
    4,Full encapsulated for moisture,vibration and
    corrosion resistance
    5.Color: AMBER / BLUE / RED / WHITE OR DUAL COLORS
  • video LED WARNING LIGHT + ROUND YELLOW (SIDEMARK/DIRECTION) FUNCTIONS LED WARNING LIGHT + ROUND YELLOW (SIDEMARK/DIRECTION) FUNCTIONS
    LED WARNING LIGHT + ROUND YELLOW (SIDEMARK/DIRECTION) FUNCTIONS
    LED Warning Light with sidemark
    1.Power : 6PCS 4W LEDs / 51PCS 0.2W LEDs
    2.Voltage:10-30V DC
    3.Beam Pattern: 19 flash
    4.Dimension: 130*40*11mm
    5. LED Color : Amber +Amber
    6.Working Temperature:-45 ~60°C
    7. Material: ; Aluminum alloy housing +PC Lens
    8. Mount: Two bolts with a rubber
    9.Waterproof: IP69K
    10.Guarantee: 3 years
